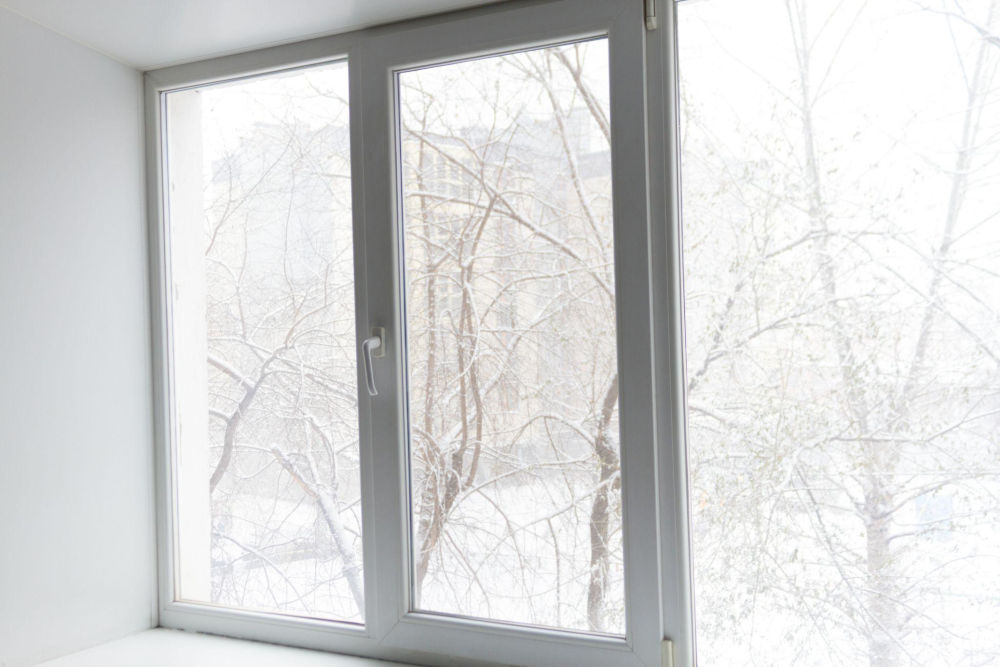

An extreme cold window is a window assembly built to maintain performance when outdoor temperatures sit well below freezing for weeks: usually triple-glazed, with a low-emissivity coating, an inert gas fill, a warm-edge spacer, and a frame that doesn’t conduct heat straight through itself. The phrase is descriptive, not technical. No certification is called extreme cold, and no product category has fixed specifications. What exists is a set of components that together keep the interior glass surface warm enough to stay dry and comfortable at minus 30.
Whether your Calgary or Edmonton house needs one depends on three observations you can make yourself: how cold the rooms feel near the glass today, whether condensation or frost appears on the interior surface in January, and what the existing frames and seals are actually doing. Age is not one of them. A sound twenty-year-old unit can outperform a poorly specified new one.
This article explains what each component contributes, which performance numbers matter and which don’t, how the certification thresholds read in Canada, and how to decide between doing nothing, replacing the glass unit, and replacing the window. It also covers when replacement will not solve your problem.
Key Takeaways
- U-factor is the number that matters in a heating climate. It measures heat loss through the whole assembly, and lower is better. When the indoor-to-outdoor difference exceeds 50 degrees on a cold Alberta night, a lower U-factor changes comfort and heating load far more than it would in a mild climate.
- ENERGY STAR Canada has no climate zones. The zone system ended when version 5.0 took effect on 1 January 2020. There is now one national criterion: a U-factor of 1.22 W/m2K or lower, or an Energy Rating of 34 or higher, with air infiltration and exfiltration of 1.5 L/s/m2 or lower.
- The interior surface temperature is what you actually feel, and it follows from the U-factor. The colder the glass surface, the more heat your body radiates toward it and the sooner condensation forms. The drop below room temperature scales with the assembly U-factor, which is why a lower number changes the room experience, not just the gas bill.
- The coating and the gas fill are a pair, not alternatives. A low emissivity coating reflects radiant heat back into the room. An argon fill slows conduction and convection across the cavity. Removing either reduces what the other delivers.
- The frame and the spacer decide where condensation starts. Condensation appears first at the coldest point of the assembly, which is almost always the glass edge where the spacer sits. A high-performance glass unit set into a conductive frame with an aluminum spacer will still wet at the perimeter.
- Evidence beats age. Failed seals, fogging between the panes, drafts you can feel with the sash locked, and frost on the interior surface trigger replacement. A window showing none of them may have years left.
- Replacement does not fix an air sealing problem. If cold air is coming through the rough opening or the wall around it, a new window reduces conductive heat loss but leaves the draft exactly where it was. The two are separate jobs.
What the Components Actually Do
In Alberta, the design condition isn’t just cold. It is sustained cold at minus 20 to minus 35 for long stretches, interrupted by Chinook swings that can move the outdoor temperature sharply within hours. The sustained cold sets the thermal requirement. The cycling sets the durability requirement, and it loads seals and frame corners in a way a steady climate does not.
Triple Glazing and the Gas Fill
Triple glazing means three panes and two sealed cavities instead of two panes and one. Each cavity is filled with an inert gas, normally argon, which conducts heat more slowly than air. The result is one more barrier than a double-glazed unit and two more than single glazing.
A current triple-glazed unit with a low emissivity coating and an argon fill typically lands somewhere between 0.8 and 1.2 W/m2K for the whole window. A basic double-glazed unit with no coating sits closer to 2.7 to 3.0 W/m2K at the centre of the glass, and worse once you include the frame. That is not a marginal difference. It is the gap between a room you use in January and a room where the furniture has been moved away from the window. If you are comparing glass packages, argon-filled windows are the baseline rather than the upgrade in this climate, and the question worth asking is what sits on top of that baseline.
Krypton comes up occasionally in this conversation. It conducts heat more slowly than argon and performs better in narrow cavities, which makes it useful when total frame depth has to stay down. For most residential replacement work in Alberta, the practical difference is small, and the cost difference is not. Argon-filled triple glazing meets the Canadian criteria comfortably.
Low Emissivity Coatings
A low emissivity coating is a microscopically thin layer of metal or metal oxide applied to a glass surface inside the sealed unit. It reflects long-wave infrared radiation back toward the warm side while letting visible light through. In a heating climate, the objective is to keep room heat from radiating outward through the glass.
Coatings are not interchangeable. Some are formulated to retain heat while still admitting useful solar gain, which is what a cold climate wants. Others are designed to block solar heat, which is what a cooling climate wants. Fitting the second type on a south-facing wall in Calgary means paying for a coating that works against you for five months of the year. This is a specification question with a right answer per elevation, not a product tier.
Solar Heat Gain, Read by Elevation
Solar heat gain coefficient measures the fraction of solar energy that passes through the glazing as heat, on a scale of 0 to 1. A value of 0.40 admits 40 percent.
In Alberta, a higher figure on south-facing glass is an asset: the winter sun sits low, the heating season is long, and afternoon passive gain reduces what the furnace has to do. On north-facing glass there is no direct sun to capture, so the decision collapses to U-factor alone. On west-facing glass, the same coefficient that helps in January contributes to overheating in July, particularly in rooms with no external shading. Orientation, not a single house-wide specification, is the correct basis for choosing.
Frames, Spacers and Where the Cold Gets Through
A thermal bridge is a high-conductivity path through an otherwise insulating assembly. A window has two: the frame and the spacer bar holding the panes apart at the glass edge.
Most people have never thought about the spacer, and it is where the trouble starts. An aluminum box spacer conducts cold from the outer pane toward the interior glass edge, so the glass perimeter runs colder than the centre. Condensation forms at the coldest point available, which means the edge wets while the middle of the window stays clear. Warm edge spacers made from low-conductivity materials such as structural foam, fibreglass or silicone reduce that bridge and lift the edge temperature.
Frames repeat the problem at a larger scale. Aluminum conducts heat readily and needs a thermal break, meaning an insulating barrier separating the interior and exterior metal, to be viable in this climate at all. Vinyl conducts far less, and a multi-chamber profile traps still air inside the frame, which adds insulating value on top of the material itself. Because these choices differ by opening size and elevation, custom windows built to a specification rather than pulled from a stock range are what let the frame, spacer and glass package be matched to the same performance target.
Reading the Numbers Without Being Misled
The Canadian Thresholds, Correctly Stated
Much published advice on this subject still refers to ENERGY STAR climate zones in Canada. Those no longer exist. The ENERGY STAR Canada specification, version 5.0, took effect on 1 January 2020 and replaced the zone system with a single national criterion: a whole window U-factor of 1.22 W/m2K or lower, or an Energy Rating of 34 or higher, together with air infiltration and exfiltration of 1.5 L/s/m2 or lower. Anything you read that assigns Calgary or Edmonton to a numbered Canadian ENERGY STAR climate zone predates that change.
Two consequences follow for anyone shopping in Alberta. First, a good double-glazed low-emissivity argon unit generally sits above the 1.22 W/m2K line and certifies through the Energy Rating route instead, by earning enough on solar gain. A triple-glazed unit usually clears the U-factor threshold outright. That is the structural reason triple glazing dominates the certified Alberta market, and it is a more useful explanation than the marketing version.
Second, certification is a floor. Meeting 1.22 W/m2K is the entry requirement, not the target. For reference, at the other end of the range, the Passive House Institute certifies windows by climate region, and its cold climate region covers southern Canada. A window certified for that region must reach a whole-window U-factor of 0.60 W/m2K or lower, or 0.65 or lower once installed in the wall, with a minimum temperature factor of 0.75. The retrofit standard relaxes the limit to 1.00 W/m2K. Almost no residential replacement project needs to hit those numbers, but they tell you how much room exists between the certification floor and what the technology can actually do.
Interior Surface Temperature, and the Claim to Distrust
The most common claim in articles on this subject is a specific pair of interior glass temperatures for triple and double glazing at some stated outdoor temperature. Treat those figures with caution. Interior surface temperature is not a product property. It depends on the assembly U-factor, the indoor temperature, the indoor humidity, the air movement across the glass and the point on the window you measure, because the edge and the centre are not the same.
What is reliably true is the relationship. The interior surface sits below room temperature by an amount that scales with the assembly U-factor and with the indoor-to-outdoor difference. Halve the U-factor, and you roughly halve the drop. That is why a lower U-factor changes how a room feels, not just what it costs to heat: your body radiates heat toward a cold surface even in perfectly still air, and a warmer surface stops it.
If you want a published number that captures this rather than a brochure figure, ask for the condensation resistance rating. It is an optional value on the NFRC label, scored from 0 to 100, higher being better at resisting surface condensation. It is the closest thing to a comparable, third-party measurement of the behaviour people are actually asking about, and the fact that not every manufacturer publishes it tells you something in itself.
Whole Window, Not Centre of Glass
Whenever a U-factor is quoted, establish which one it is. The centre-of-glass figure excludes the frame and the edge-of-glass zone, where most thermal bridging happens, so it always looks better. The whole-window figure determines performance and what certification is based on. A number that looks markedly better than everything else on your list is usually the wrong one.
What This Delivers in an Alberta House
A Room You Can Use in January
The most immediate effect is radiant. A cold glass surface pulls heat off anyone sitting near it regardless of air temperature, which is the sensation people describe as a room feeling cold at 21 degrees. A second effect is convective: warm room air touching cold glass cools, becomes denser and falls toward the floor, producing a slow downdraft along the wall. Both weaken as the interior surface temperature rises, and both are why comfort tends to be a more persuasive argument than payback in this climate.
Condensation and Frost Control
Condensation appears when a surface falls below the dew point of the air touching it. In a dry prairie winter, indoor humidity is often low enough that a competent assembly stays clear, so visible condensation is information rather than inevitable. It says the surface is genuinely cold, or that a seal has gone.
This matters beyond comfort. Water sitting on a sill soaks into wood, lifts paint, and eventually reaches the wall below. By the time the damage is visible, the repair is no longer a window job. Frost on the interior surface is the same signal one stage further on.
“The thing I see most often on site is a homeowner who replaced the glass unit but kept the original frame from the 1990s. The new glass performs at the centre, but the old frame and the old spacer channel are still a cold bridge at the perimeter, and that is exactly where the condensation comes back. The frame and the glass have to be judged together, not one at a time.” – Chris Perry, Project Manager, Weather Pro Windows and Doors
Lower Heating Load, Within Limits
Reducing conductive heat loss through the glazing reduces what the furnace has to replace, and in a five-month heating season, that adds up. I can’t honestly give a percentage. Savings depend on how poor the existing windows are, how much of the house’s total heat loss runs through glass rather than walls, ceiling, and air leakage, the glass area and its orientation, and the quality of the installation. A house with a tight envelope and bad windows will see a large change. A house with leaky walls and mediocre windows will see much less, because the windows were never the dominant path. Published figures on window cost will tell you what the work costs. No published figure can tell you what it will save in your specific house, and anyone offering a guaranteed percentage is estimating.
Larger Glazing Without a Cold Zone
A large opening amplifies whatever the assembly does. A standard double-glazed unit in a wide picture opening creates a cold zone across the whole glass area and a downdraft along the wall beneath it. The same opening with a high-performance triple-glazed unit maintains a usable surface temperature across the full area, which makes larger glazing viable in a renovation rather than a comfort trade-off against the view.
Cold Climate Assemblies Compared With Standard Double Glazing
Read the table as a guide to the trade-offs rather than as a specification sheet for any product. Ask for the tested figures for the exact assembly you are quoted.
| Dimension | Cold climate assembly, usually triple glazed | Standard double glazed unit |
|---|---|---|
| Panes and cavities | Three panes, two sealed cavities | Two panes, one sealed cavity |
| Whole window U-factor | Commonly 0.8 to 1.2 W/m2K. Passive House cold climate certification requires 0.60 or lower | Commonly 1.6 to 2.8 W/m2K, higher on older units with no coating |
| ENERGY STAR Canada | Clears the 1.22 W/m2K limit on the U-factor route without needing the Energy Rating alternative | A good low-e argon unit usually certifies through the Energy Rating route rather than on U-factor |
| Interior surface temperature | The surface sits closer to room temperature because the drop below room temperature scales with U-factor | A larger drop at the same outdoor temperature, which is what produces the radiant chill near the glass |
| Condensation risk | Lower, and the NFRC condensation resistance rating is the published figure that compares it | Higher, and it concentrates at the glass edge where the spacer sits |
| Spacer and frame | Warm edge spacer with a low conductivity frame, multi-chamber or thermally broken | Often an aluminum box spacer and a less insulated frame profile |
| Solar heat gain | Specified per elevation, higher on south glass and lower on west | Rarely specified per elevation. Older tints cut light without improving the thermal result |
| Weight | Heavier. Hinges, operators and frame have to be sized for it | Lighter. Standard hardware is adequate |
| Cost per opening | Higher | Lower |
The weight row deserves more attention than it usually gets. A triple-glazed unit is heavier than a double-glazed one of the same size, and on an operable style the hinges, operator, and frame must be sized for that load. A triple-glazed casement built as a triple-glazed casement runs smoothly for years. A triple-glazed unit dropped into hardware specified for double glazing develops sag, binding and seal wear, and it does so slowly enough that nobody connects the cause to the decision.
Where the Upgrade Is Worth Making
Bedrooms and Living Space on the Cold Elevations
North- and east-facing rooms receive little or no winter sun, so no solar gain offsets conduction, and the U-factor does all the work. These are the rooms where the difference between assemblies is most noticeable and where the upgrade pays for itself first. If budget forces a phased project, this is where phase one goes.
Houses Built Between 1970 and 2000
This is the bulk of the replacement market in Calgary and Edmonton. The original units are usually double-glazed with no coating, an air fill, and an aluminum spacer, and the seals have had thirty years of Chinook cycling. The baseline is low enough that a competent modern assembly makes a big difference without a premium specification, and the money is often better spent on the frame, the spacer, and the installation than on the highest available glass rating.
Rooms With Persistent Condensation
Where condensation returns every winter on the same windows, the assembly is the constraint rather than the household. Before committing to replacement, check the obvious humidity sources: a humidifier running too high, a bathroom fan that does not reach outside, drying laundry indoors. If you rule those out and the condensation persists, the surface temperature is too low, and no amount of ventilation discipline will fix it.
Large Openings and Additions
Any project adding glass area, whether a wider picture window or a new opening in a renovation, changes the thermal balance of the room it serves. Specifying the cold-climate assembly at the design stage costs less than discovering the cold zone after the drywall is up.
How to Assess Your Own Windows
Do this on a genuinely cold morning, because most of the evidence is only visible then. Four checks per window, none of which need tools.
- Hold a hand 15 to 20 centimetres from the glass without touching it. If you can feel cold radiating at that distance, the surface temperature is low enough to affect how the room feels.
- Look at the glass perimeter and the sill. Condensation or frost concentrated at the edges rather than across the whole pane points to the spacer and the frame rather than at the glass.
- Look between the panes. A haze or fog you cannot reach by wiping either surface means the seal has failed, the gas fill has gone, and the unit is now performing roughly like an air-filled one.
- Check the frame corners and the sill for soft spots, gaps, or paint lifting. Frame movement affects both thermal performance and the air seal, and it decides whether a glass-only repair is even an option.
Glass Only, or the Whole Window
If the frame is square and sound, the sill is dry, and the profile can accept a new unit, window glass replacement restores the glazing’s thermal performance at a fraction of the cost of a full replacement. It is the right answer more often than the industry generally admits.
The limit is the one named in the quote above. An older frame with an aluminum spacer channel and a poorly insulated profile remains a cold bridge at the perimeter no matter what glass goes into it. If the condensation you are trying to solve is at the edge rather than across the pane, the frame is the source, and a new glass unit will not move it.
Where Installation Decides the Result
A high-specification assembly installed with an unsealed rough opening performs like a cheaper one with a good perimeter seal. The rough opening must be sealed continuously, the sill flashed, and the frame shimmed evenly so the sash meets its gasket along the entire closing edge. This is why the installer matters as much as the specification, and why asking about the perimeter detail tells you more than any figure on a product sheet. When comparing companies for window installation in Calgary or Edmonton, ask specifically how the air seal is made and who is accountable if a draft appears afterwards.
Four Questions Before You Order
- Is that U-factor the whole window figure or the centre of glass figure?
- What spacer is in the unit, and is it a warm-edge type?
- Is the low emissivity coating specified for heat retention with solar gain, or for solar control, and is it the same on every elevation?
- Is the hardware sized for the weight of a triple-glazed sash in this size?
What a New Window Will Not Do
Three things sit outside what any glazing specification can reach.
Air leakage around the opening. A draft arriving through the gap between the frame and the rough opening, or through the wall assembly beside it, is not a glazing problem. A new window reduces conduction and leaves that path untouched. Establish which one you have by feeling along the perimeter rather than at the glass, because the remedy and the cost are completely different.
The rest of the envelope. Windows are one path out of several. Where the walls are poorly insulated, or the attic leaks, upgrading the glazing improves the weakest visible component while the larger losses continue unseen. If the whole house feels cold rather than the rooms near the windows, the assessment worth paying for is of the envelope, not the windows.
Indoor humidity. A better assembly raises the temperature at which condensation starts. It does not set the humidity level. A house running high indoor humidity through a prairie winter can still wet its windows, and at that point the ventilation is the problem rather than the glass.
Judge the Window, Not the Calendar
Extreme cold windows are not a product tier. They are the combination a heating climate requires: triple glazing, a coating chosen for the elevation, an argon fill, a warm edge spacer, a frame that does not conduct, and an installation that seals. Each element covers a weakness the others cannot, which is why a specification strong in one and weak in another underperforms a balanced assembly.
You can tell whether you need one by your own house on a cold morning. Sound seals, dry glass, a square frame and no radiant chill mean the windows are still doing their job, whatever year they were installed. Fogging between the panes, frost at the edges, a soft sill, or a room you have stopped using in winter means they are not. Go look on the next cold day, and decide based on what you find rather than the date on the sticker.
Frequently Asked Questions
What U-factor should I be looking for in Calgary or Edmonton?
Start at the certification threshold and work down. ENERGY STAR Canada requires a whole window U-factor of 1.22 W/m2K or lower, or an Energy Rating of 34 or higher, under one national criterion that has applied since 2020. A current triple-glazed assembly usually lands between 0.8 and 1.2 W/m2K and clears the threshold on U-factor alone. Passive House cold climate certification, which covers southern Canada, sets 0.60 W/m2K, which shows how much room exists above the minimum. For a room that already feels cold or shows condensation, you’ll start to notice a change at the lower end of the 0.8 to 1.2 range.
Does ENERGY STAR Canada still use climate zones?
No. The Canadian zone system ended when version 5.0 of the specification took effect on 1 January 2020. Any guidance that assigns a Canadian city to a numbered ENERGY STAR climate zone, or quotes a zone-specific U-factor for Canada, is describing the previous version. The current criterion is national: 1.22 W/m2K or lower, or an Energy Rating of 34 or higher, with air infiltration and exfiltration of 1.5 L/s/m2 or lower. Climate zone 7A, which is where Calgary and Edmonton sit, is a National Building Code designation and a separate system.
Is triple glazing worth the extra cost in Alberta?
On the cold elevations and in rooms used through winter, generally yes, and the argument is comfort rather than payback. The heating savings alone rarely produce a short payback period, and the honest position is that it varies too much between houses to quote. What is consistent is the surface temperature difference, which changes how a room feels on every cold day for five months of the year. That is a value judgement rather than a calculation, and it belongs to you.
Can I replace only the glass unit and keep the frame?
Often, yes. If the frame is square and structurally sound, the sill is dry, and the profile accepts a new unit, replacing the sealed unit restores the glazing performance at much lower cost. The limit is the frame itself. An older profile with an aluminum spacer channel and little insulation stays a cold bridge at the perimeter regardless of what goes in it, so if the condensation you want to solve is at the glass edge rather than across the pane, glass only will not resolve it.
What is the difference between argon and krypton fills?
Both are inert gases that conduct heat more slowly than air. Argon is common because it is inexpensive and widely available and gives a clear improvement over air. Krypton conducts heat more slowly and performs better in narrow cavities, making it useful where total frame depth is constrained. For most residential replacement in Alberta, the difference is small relative to the cost, and argon-filled triple glazing meets the Canadian criteria comfortably. Krypton belongs in high specification and Passive House work where every fraction of U-factor is being chased.
How do I know whether a seal has failed?
A failed seal shows as haze, fog or streaking between the panes that will not clear from either surface. It means the seal around the cavity has broken down, humid air has entered, and the gas fill has escaped, so the unit now performs roughly like an air-filled one. It is not repairable, and the sealed unit has to be replaced. Failures across several openings, particularly alongside frames showing their age, usually make full replacement the more sensible route than repeated glass-only repairs.
Will new windows stop the drafts in my house?
Only the ones coming through the window itself. A correctly installed new unit eliminates air movement through the assembly and reduces conduction through the glass and frame. It does nothing about air arriving through gaps in the rough opening, missing insulation in the wall cavity around the frame, or leakage elsewhere in the envelope. Test by running a hand around the frame perimeter rather than across the glass. If the movement is at the perimeter, the sealing and installation need attention, regardless of what glass package goes in.
